EV Charging · AC

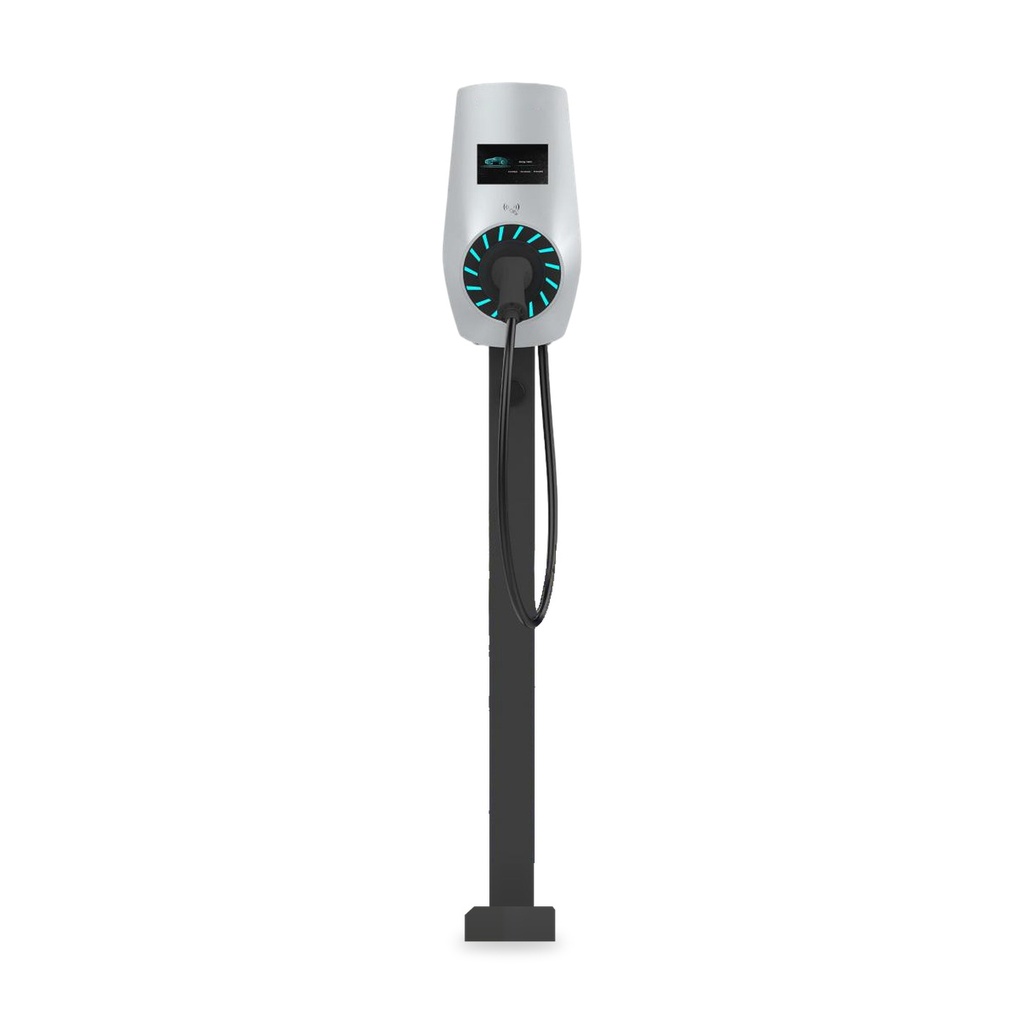

SPACE EV AC 22 Charger
A compact 7.4 / 11 / 22 kW AC charger for restaurants, guesthouses and office car parks, wall- or pillar-mounted.
Product code: SPC-EV-AC22
Use case
A restaurant by a hiking trail wants to give guests a reason to stay longer.
A single AC charger on the wall or on a pillar lets visitors top up their battery during a meal, using an RFID card or the app.
How it works
Three power levels
7.4 kW single-phase, or 11 kW and 22 kW three-phase, with a 5 m tethered cable or a Type 2 socket.
Open standard
OCPP 1.6J and 2.0.1 over Wi-Fi, Ethernet or optional 4G, so it works with your chosen back office.
Built-in protection
Type A RCD with 6 mA DC detection, plus over/under-voltage, overload, short-circuit, surge and over-temperature protection.
Specifications
| Parameter | Value |
|---|---|
| Rated power | 7.4 kW (230 V, 32 A) · 11 kW (400 V, 16 A) · 22 kW (400 V, 32 A) |
| Connector | Type 2: 5 m tethered cable or socket |
| User authentication | Plug & Charge, RFID card, mobile app |
| Communication protocol | OCPP 1.6J, OCPP 2.0.1 |
| Connectivity | Wi-Fi, Ethernet (LAN), 4G optional; RS485 |
| Energy meter | MID meter optional |
| Residual current protection | Type A + 6 mA DC |
| Display | 4.3" optional |
| Ingress / impact protection | IP65 (cable) / IP54 (socket); IK08 |
| Operating temperature | −30 to +50 °C |
| Dimensions (W × D × H) | 240 × 145 × 460 mm; pillar 165 × 115 × 1450 mm |
| Weight | 4.3 kg (socket), 6.85 kg (cable) |
| Housing | PC + ASA |
| Mounting | Wall or pillar |
| Compliance (manufacturer declaration) | CE, CB, UKCA, RoHS, REACH, EU RED cybersecurity |
All technical data are manufacturer declarations. Specifications may change without notice. Edition 10.2026.
How we work with you
- Check of available power and cable routes on site.
- Choice of chargers and load management for your car park.
- Configuration of access: RFID cards, app or payment terminal.
- Installation, commissioning and connection to an OCPP back office.
Detailed technical documentation and drawings are available on request.
Technical documentation
Specifications
| Device type | EV chargers |
| Brand | SPACE |
| Connectivity | Wi-Fi, Ethernet (LAN), Cellular |
| Suitable for | Hotels and apartments, Offices and commercial buildings, Residential and rental |
| Charging type | AC (alternating current) |
