Manufacturer: Mingyang
Solar PV & BIPV · Curtain walls and skylights
Mingyang BIPV Customized Module – PV curtain wall and skylight glass (on request)
Photovoltaic glass made to the project: size up to 4 × 6 m, non-rectangular shapes, colour, printed pattern and light transmission chosen with the architect.
Product code: SPC-PV-MY-CUS
Use case

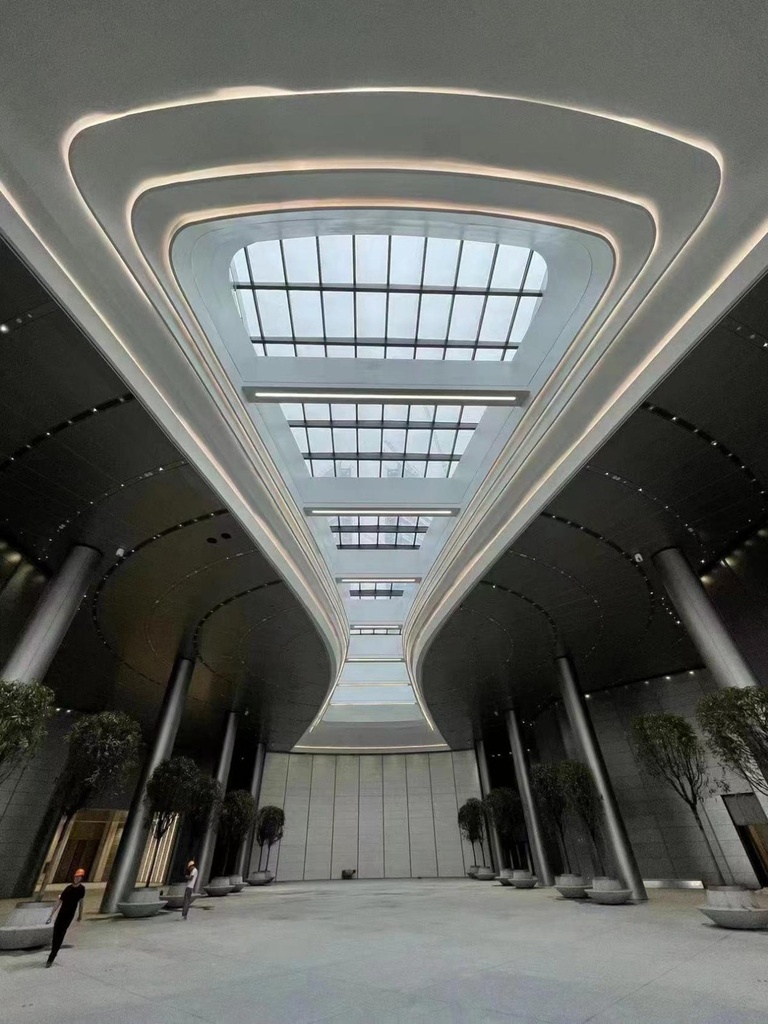

An architect wants the PV glass on a museum façade to look like marble and the skylight above the atrium to let in 30% of the light.
Mingyang makes both from the same CdTe or HJT technology, in laminated or insulating build-ups that fit the curtain wall system.
How it works
Any look

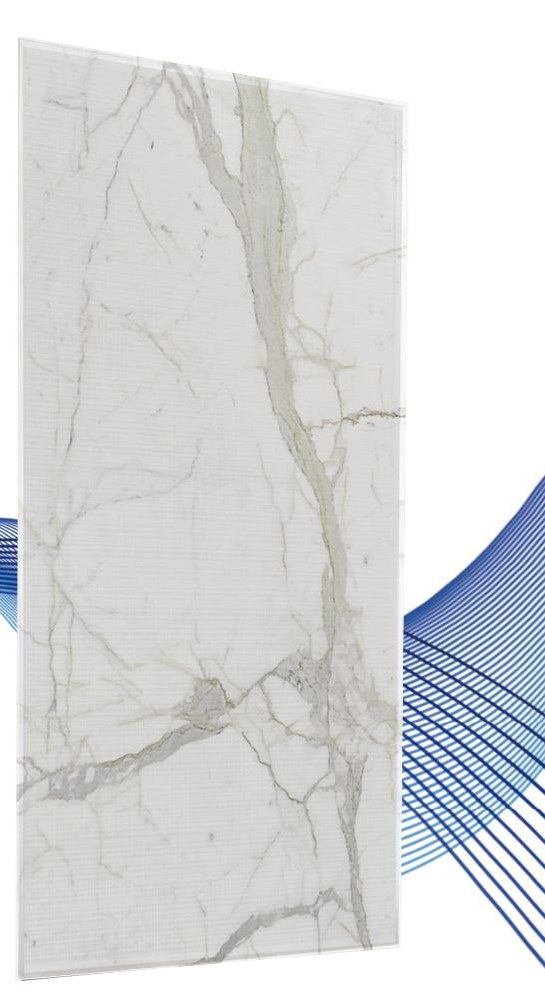

Standard or custom colours, and printed patterns such as stone, marble, wood or artwork.
Light transmission to order
Examples in the datasheet: 10%, 20%, 30% and 40%, matched to the daylight the space needs.
Glass first
Laminated or laminated insulating build-ups with tempered or semi-tempered glass of 5 to 12 mm; Low-E glass or solar-control film for thermal and acoustic needs.
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Mingyang |
| Applications | Curtain wall glass, PV glass for skylights |
| Cell technology | CdTe thin film (standard panel 17.3%) or HJT (quarter-cut cell 26%, standard panel 23+%); efficiency may vary with customisation |
| Size and shape | Any size less than 4 × 6 m; non-rectangular shapes possible |
| Colour and pattern | Standard range or customer-designated colour; printed patterns |
| Light transmission | Custom; examples 10% / 20% / 30% / 40% |
| Glass | Tempered or semi-tempered, single pane 5–12 mm |
| Interlayer | PVB 0.38–3.04 mm (typically 1.14 or 1.52 mm) |
| Structure | 2 or 3 glass layers laminated; 3 layers + insulating glass; 3 layers + insulating + double glass |
| Options | Low-E glass or solar-control film |
| Power | Per project, on request |
| Warranty | 10-year product warranty, 25-year performance warranty (more than 85% power after 25 years; 2.0% in year 1, then 0.5% per year) |
| Certificates | Company: ISO 9001, ISO 14001 and ISO 45001 (SGS). Product certificates for the specific build-up are confirmed per project. |
Manufacturer: Mingyang. Offered and supported in Poland by Space BMS sp. z o.o. Enquiries: +48 533 909 533 or the contact form on this website.
Mingyang projects are prepared together with the manufacturer’s BIPV engineering team.
All technical data are manufacturer declarations. Specifications may change without notice. Edition 10.2026.
How we work with you
- Site visit and roof or car-park survey.
- Yield estimate and system layout for your building.
- Structural and grid-connection check with your designer.
- Installation by qualified partners and commissioning.
Detailed technical documentation and drawings are available on request.
