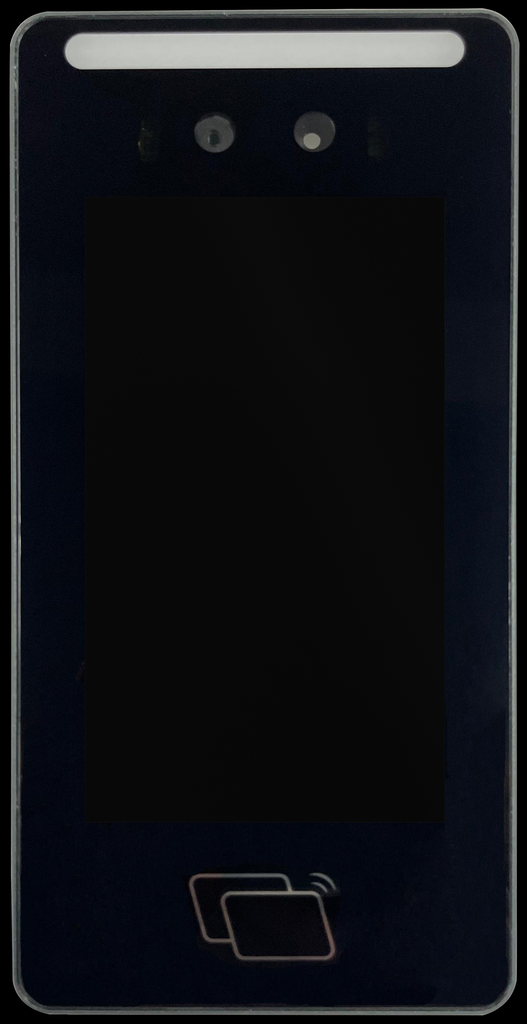

Space Pad BIO 5" Biometric Terminal
Compact wall-mounted terminal with a 5" screen (5" screen diagonal). Face recognition in 0.2 s, up to 30,000 users.
Face, card or QR code
Face recognition in ≤ 0.2 s, up to 30,000 users on one device. QR code depending on model. Anti-spoofing can be configured.
Linux, connectivity, time & attendance
A Linux terminal with a screen. Connects via RJ45, with optional Bluetooth and cellular. Suited to access control and time & attendance.
Access for visitors and staff
QR entry via WhatsApp
A visitor is coming to a 3:00 pm meeting. In two seconds, an employee sends them a QR code on WhatsApp, valid for 2 hours. The visitor scans it at the entrance and in the lift: no reception desk, no card, no app.
A new employee has access from day one, and when someone leaves, the administrator switches their access off with one click.
- 1
Write
The administrator adds a person by their WhatsApp number. They message the building’s WhatsApp Business number and pick an option from the menu.
- 2
Get your code
“Entry code” is a personal QR code. “Guest code” gets a start time and validity, e.g. 120 minutes, and is forwarded to the visitor on WhatsApp.
- 3
Scan
Scan the code at the lock or terminal. No app to install, no card.
Works via Space Engine with:
- Space Lock MAX
- Space Pad Pro
- Space Pad BIO (QR reader version)
Coming soon: a version for hotels and rentals, including long-term stays.
WhatsApp messages are handled by the WhatsApp Business operator; the feature is optional and can be switched off in fully on-premises deployments.
Specifications
| Screen diagonal | 5" |
|---|---|
| System | Linux, quad-core A55 1.5 GHz |
| Recognition | face ≤ 0.2 s; NFC/IC card; QR code (depending on model) |
| Anti-spoofing | can be configured |
| Capacity | up to 30,000 users |
| Camera | 2 MP (1920 × 1080) |
| Connectivity | RJ45; Bluetooth and cellular optional |
| Use | room access, time & attendance; wall or turnstile mounting |
| Power | 12 V DC / 1.5 A |
| Operating temperature | −20 … +55 °C |
| Material | aluminium |
| Colour | black |
| Dimensions | 166 × 86 × 24.3 mm |
| Warranty | 12 months, with an optional paid extension to 24 months |
Technical documentation
Specifications
| Device type | Wall terminals and keypads |
| Brand | SPACE |
| Connectivity | Bluetooth, Ethernet (LAN), Cellular |
| Opening method | RFID card, Face recognition, QR code |
| Suitable for | Offices and commercial buildings, Industry and infrastructure |
| Device type (old) | Panels |
| Panels | Biometrics |
