EV Charging · DC

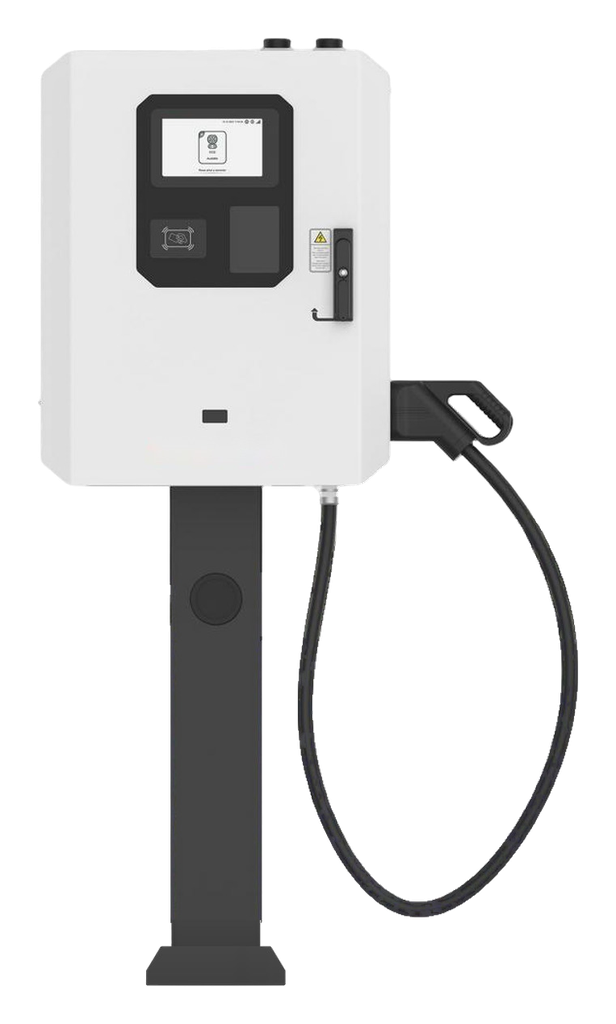

SPACE EV DC 30 Compact Charger
A compact 30 kW DC charger for hotels and destinations where guests stay for one to two hours.
Product code: SPC-EV-DC30
Use case
A conference hotel hosts day delegates who arrive by electric car and leave in the afternoon.
A 30 kW DC charger adds a substantial range during a meeting, without the grid connection a high-power station would need.
How it works
Compact DC
30 kW on a wall or pillar, with a 4.5 m CCS2 cable and a 7" touchscreen.
Wide compatibility
150–1000 V DC output covers both 400 V and 800 V vehicles.
Open and secure
OCPP 1.6J and 2.0.1, ISO 15118 Plug & Charge, and an optional card-payment terminal and MID meter.
Specifications
| Parameter | Value |
|---|---|
| Rated power | 30 kW |
| Connector | CCS2, 4.5 m cable |
| DC output | 150–1000 V, 100 A; constant power 300–1000 V |
| AC input | 400 V, 49 A rated (58 A max.) |
| Communication protocol | OCPP 1.6J, OCPP 2.0.1 |
| Vehicle communication | ISO 15118, ISO 15118-2, DIN 70121 |
| User authentication | Mobile app, RFID, QR code, MAC autocharge, Plug & Charge; card-payment terminal optional |
| Connectivity | Ethernet (LAN), 4G, Wi-Fi |
| Grid connection | 400 V AC ± 10%, 3P + N + PE, TN-S / TN-C-S / TT |
| Peak efficiency | ≥ 95% |
| Power factor (full load) | ≥ 0.99 |
| Display | 7" touchscreen |
| Energy meter | MID meter optional |
| Ingress / impact protection | IP54 / IK10 (screen IK08) |
| Operating temperature | −25 to +50 °C (derating 50–65 °C) |
| Cooling | Forced air |
| Dimensions (W × D × H) | 600 × 260 × 750 mm; pillar 240 × 240 × 1610 mm |
| Weight | 71 kg; pillar 16 kg |
| Compliance (manufacturer declaration) | CE, UKCA, RCM, RoHS, REACH, EU RED cybersecurity |
All technical data are manufacturer declarations. Specifications may change without notice. Edition 10.2026.
How we work with you
- Check of available power and cable routes on site.
- Choice of chargers and load management for your car park.
- Configuration of access: RFID cards, app or payment terminal.
- Installation, commissioning and connection to an OCPP back office.
Detailed technical documentation and drawings are available on request.
Technical documentation
Specifications
| Device type | EV chargers |
| Brand | SPACE |
| Connectivity | Wi-Fi, Ethernet (LAN), Cellular |
| Suitable for | Offices and commercial buildings, Retail and food service, Industry and infrastructure |
| Charging type | DC (fast charging) |
