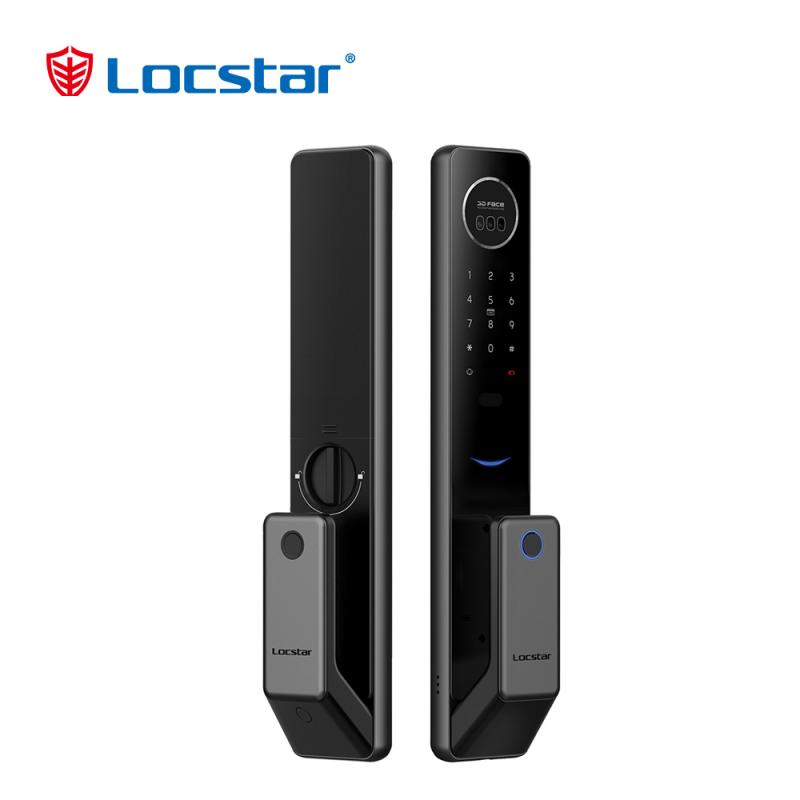

LS-T100A biometric smart lock
According to the datasheet: app, PIN code, fingerprint, mechanical key.
The lock communicates with the TTLock app via Bluetooth within a range of about 5 m. For remote control over the internet you need the G2 gateway – a generic TTLock Wi-Fi gateway, available separately.
PIN codes assigned in the TTLock app or via the API can have 4 to 12 digits. Codes entered directly from the lock menu have 6 to 12 digits (depending on the lock firmware).
Click “BUY IN SHOP” to open the product in the Space BMS shop. For larger orders and projects, call +48 533 909 533 or use the contact form.
In the “Downloads” tab. If a document you need is missing, we will send it on request.
Downloads
Datasheets and manuals in PDF format. If you need a document in another language, please contact us.
Technical documentation is available on request.

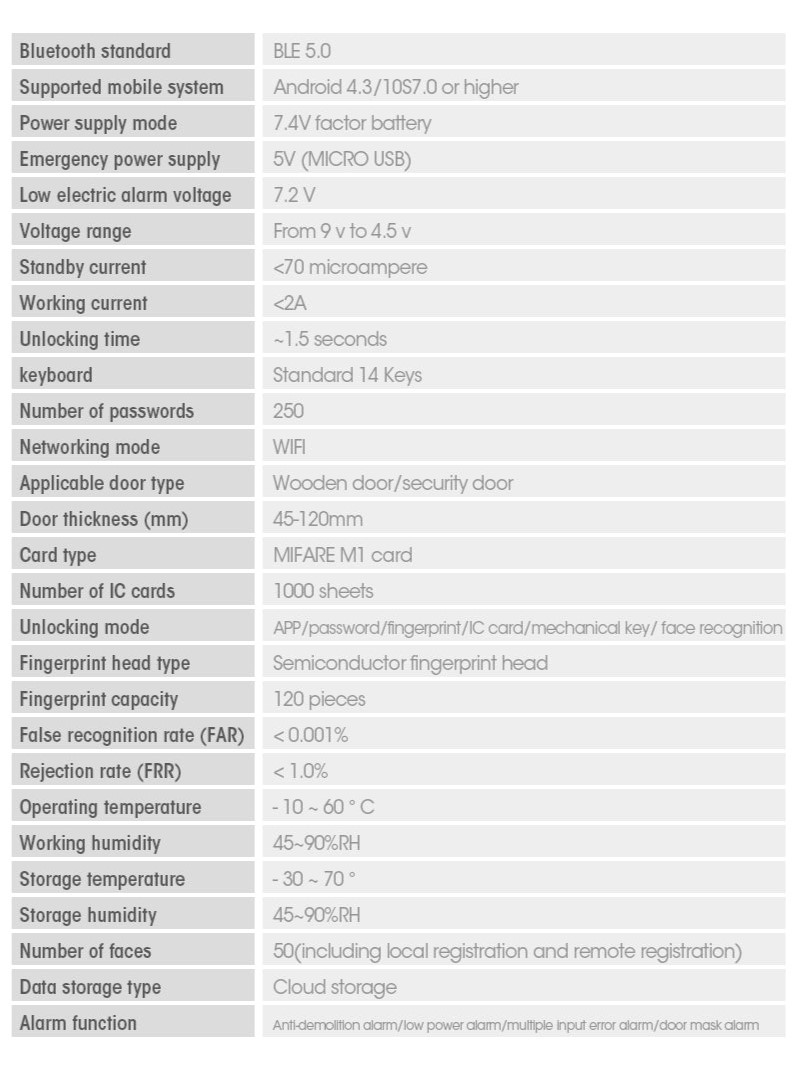

Product number | LS-T100A |
Opening methods | App, PIN code, fingerprint, mechanical key |
Material | Aluminium alloy, tempered glass |
Certyfikaty | CE/ROHS/FCC/LVD
|

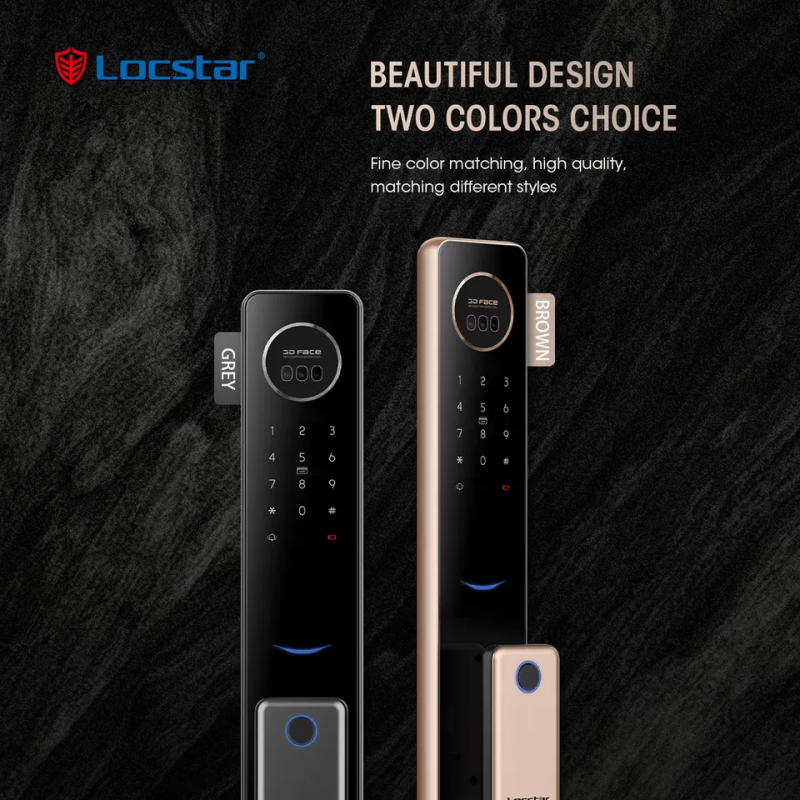

Colour | Black, gold |
Warranty | 12 months |
The LS-T100A is a biometric lock that works with the TTLock platform. It can be unlocked with face recognition, a code, card, fingerprint, the mobile app, Bluetooth or a physical key. The LS-T100A has a built-in Bluetooth 5.0 module. It is made of high-grade aluminium alloy and tempered glass.
The LS-T100A is a biometric lock that works with the TTLock platform. It can be unlocked with face recognition, a code, card, fingerprint, the mobile app, Bluetooth or a physical key. The LS-T100A has a built-in Bluetooth 5.0 module. It is made of high-grade aluminium alloy and tempered glass.
The lock itself communicates via Bluetooth when you are within 5 metres. For remote control over the internet, you need the G2 gateway, which can be purchased separately at any time.

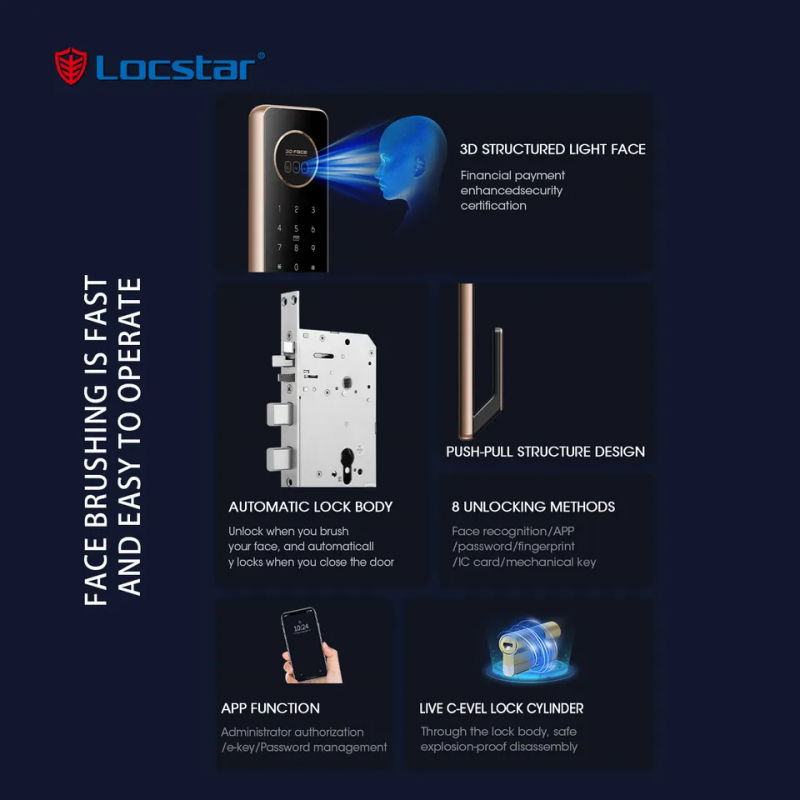

Key parameters:

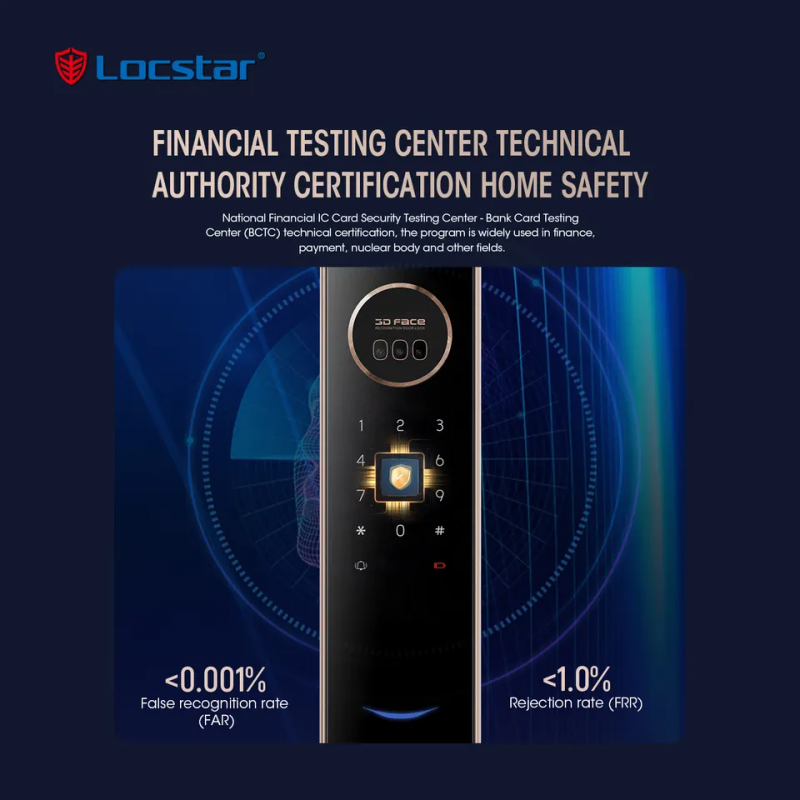

- 3D face recognition: payment-grade security, works in the dark and against backlight.
- Fully automatic lock mechanism: locks automatically when the door is closed and alerts you when the door is left ajar.
- Push-pull design, tempered glass panel in a minimalist style
- Multiple unlocking methods: face / fingerprint / PIN code / IC card / Bluetooth app / mechanical key
- App functions: administrator authorisation / electronic key / password management
- Built-in class C anti-burglary lock mechanism: secure and tamper-resistant, with significantly higher theft protection than class A and B mechanisms
- Anti-static interference: the lock withstands electrostatic discharge above 15,000 V.
- Alarm functions: tamper alarm / low battery alarm / repeated wrong entry alarm / door ajar alarm
- Long battery life: 4200 mAh lithium battery and very low power consumption. The lock can run for six months on a single charge. The battery can be recharged via the built-in USB port.
