LS-8071 RFID hotel lock

With an RFID card. The mechanical key is used for emergency opening.

Cards are encoded with the card programmer and hotel lock software. We confirm the programmer’s compatibility with the specific lock model before you order.

Click “BUY IN SHOP” to open the product in the Space BMS shop. For larger orders and projects, call +48 533 909 533 or use the contact form.

In the “Downloads” tab. If a document you need is missing, we will send it on request.

Downloads

Datasheets and manuals in PDF format. If you need a document in another language, please contact us.

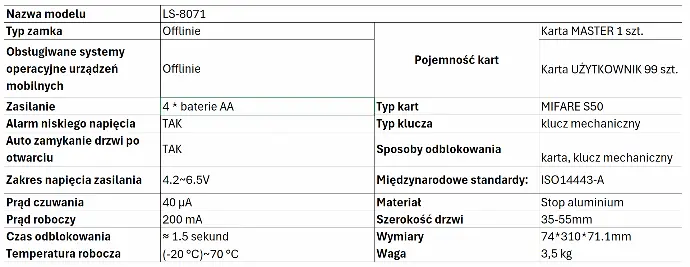

Zamek LS-8071 - Parametry_techniczne.pdf Zamek LS-8071 - Rzuty_techniczne.pdf Datasheet – LS-8071 Hotel Lock (EN).pdf

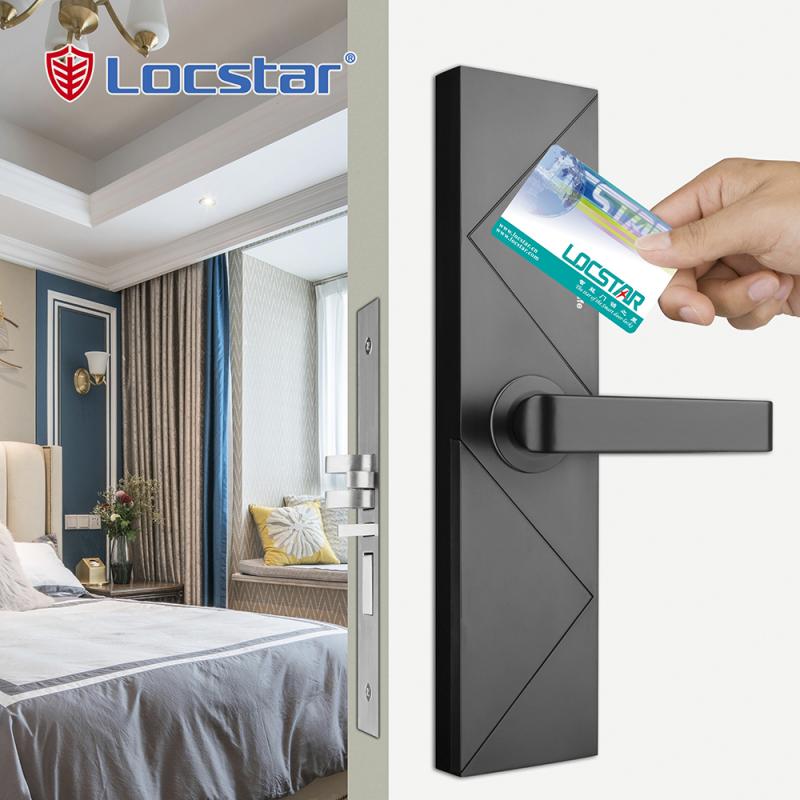

The LS-8071 RFID lock has a very modern design and is made of high-quality aluminium. The LS-8071 RFID can be unlocked with a card, or with a mechanical key in emergencies.

Product number	LS-8071
Opening methods	RFID card + mechanical key
Material	Aluminium
Certyfikaty	FCC, CE
Gniazdo/wpust	8#ANSI , 9#Euro
Colour	Black, black-silver
Warranty	12 months

The LS-8202 hotel lock can be unlocked with a card and a mechanical key. It supports different authorisation levels, such as building card, floor card, housekeeping card, maintenance card, reception card and more. We also supply a full set of accessories.

Key parameters:

Unlocking with an RFID card + mechanical key in emergencies
Supported card types: Temic T5557 125 kHz or MIFARE S50 13.56 MHz
Material: aluminium
Zasilany 4 bateriami alkalicznymi AA
Battery life: about 1 year
Low voltage alarm
Door ajar alarm

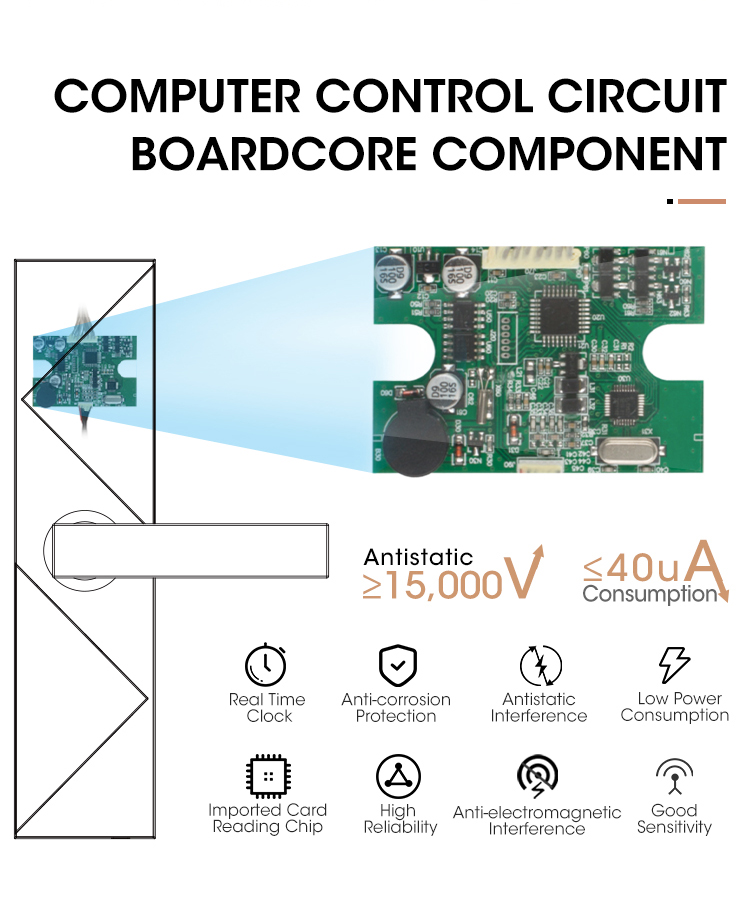

Sealed, moisture-resistant PCB
Multiple authorisation levels: 14 card types supported, including room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, alarm card, Do Not Disturb card etc.

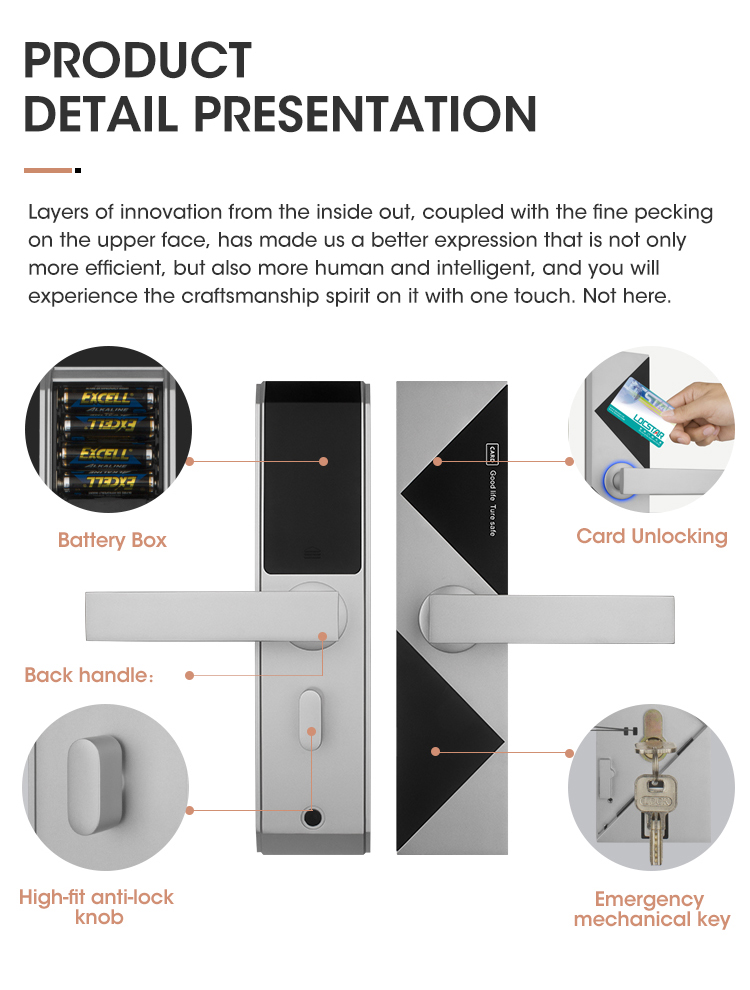

Mechanical key slot hidden behind a cover

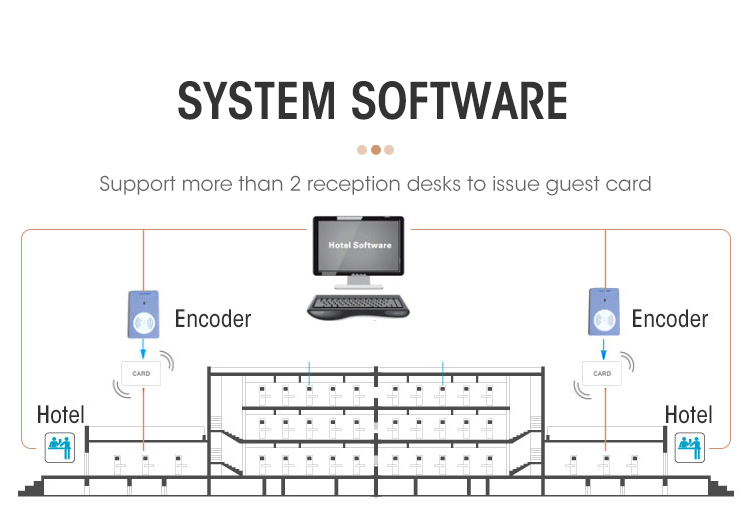

The hotel locking system includes: hotel lock software, encoder, RF cards, energy-saving switch, data collection module
Warranty: 12 months

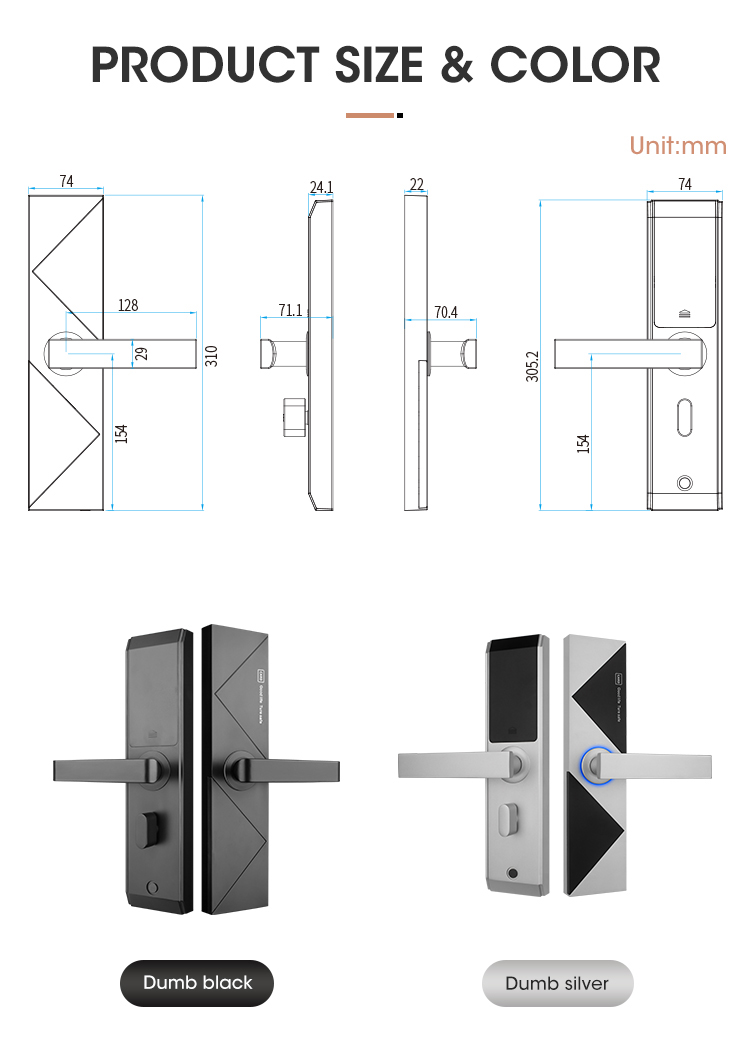

Panel size: W74 × H310 × D71 mm
