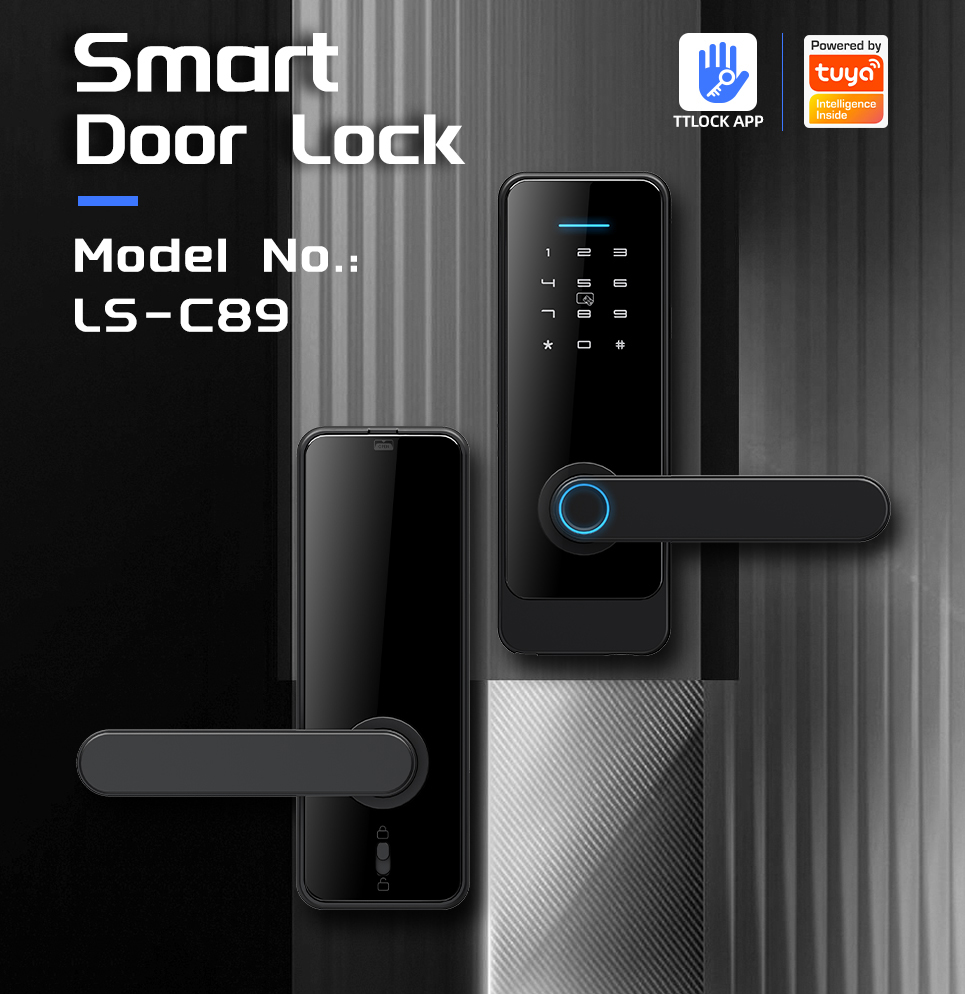

LS-C89 smart lock
According to the datasheet: fingerprint, PIN codes, RFID cards, mechanical key or mobile app.
The lock communicates with the TTLock app via Bluetooth within a range of about 5 m. For remote control over the internet you need the G2 gateway – a generic TTLock Wi-Fi gateway, available separately.
PIN codes assigned in the TTLock app or via the API can have 4 to 12 digits. Codes entered directly from the lock menu have 6 to 12 digits (depending on the lock firmware).
Click “BUY IN SHOP” to open the product in the Space BMS shop. For larger orders and projects, call +48 533 909 533 or use the contact form.
In the “Downloads” tab. If a document you need is missing, we will send it on request.
Downloads
Datasheets and manuals in PDF format. If you need a document in another language, please contact us.
Product number | LS-
C89 |
Opening methods | Fingerprint, PIN codes, RFID cards, mechanical key or mobile app |
Material | Stop aluminum |
Certyfikaty | CE/ROHS
|
Colour | Silver, black |
Warranty | 12 months |

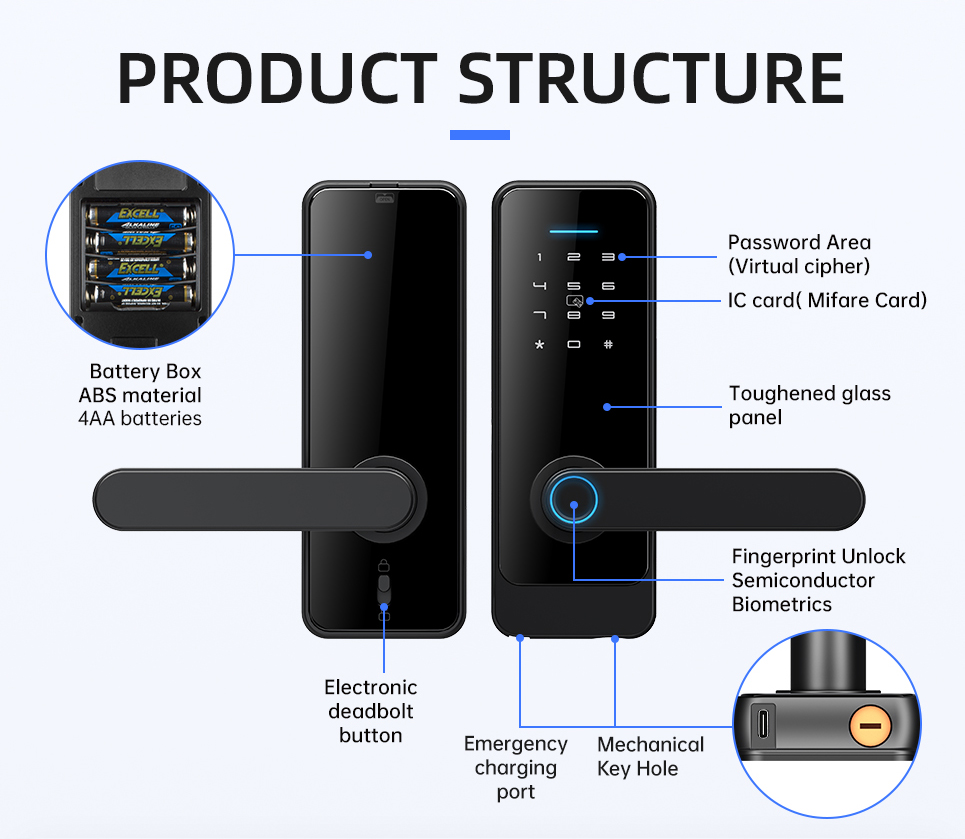

The LS-C89 works with the TUYA and TTLock platforms. It can be unlocked with a code, card, fingerprint, the mobile app or a physical key. The LS-C89 has a built-in Bluetooth 4.1 BLE module. It is made of high-grade aluminium alloy.

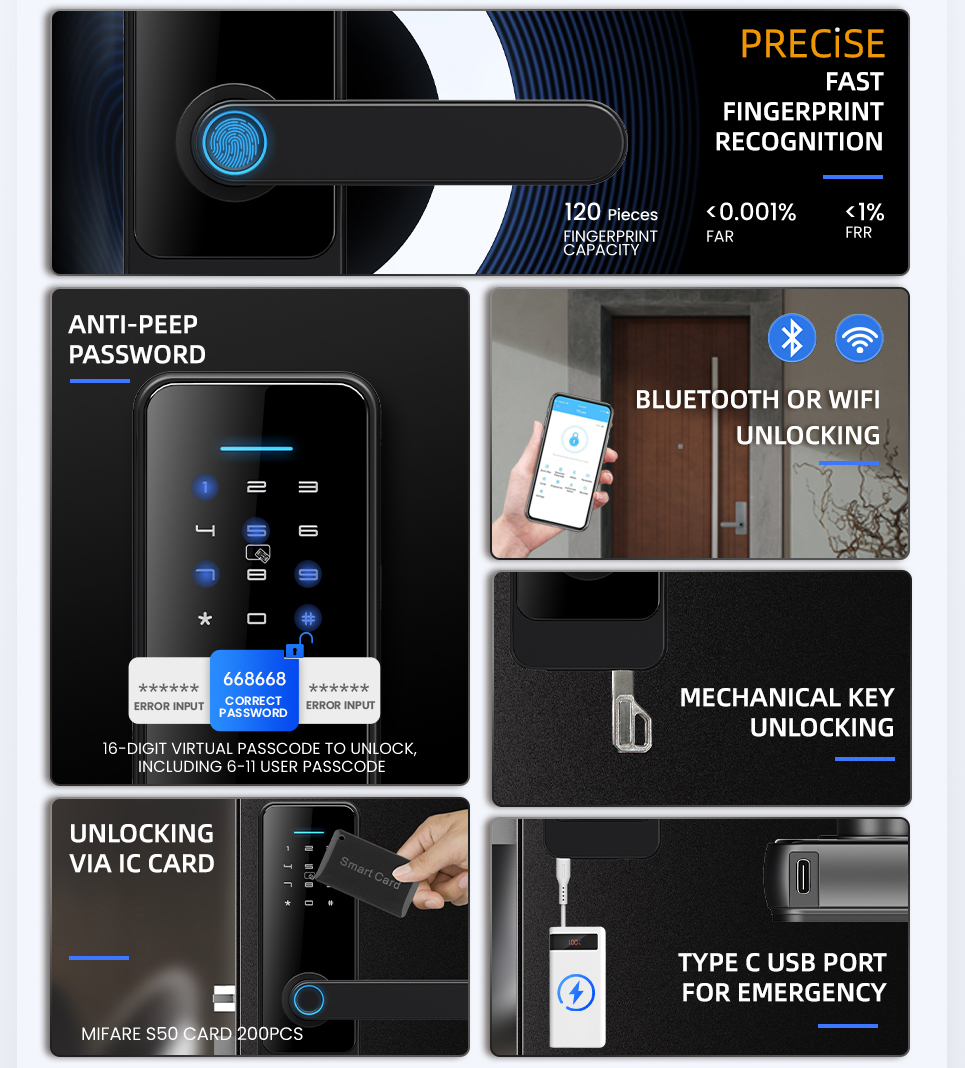

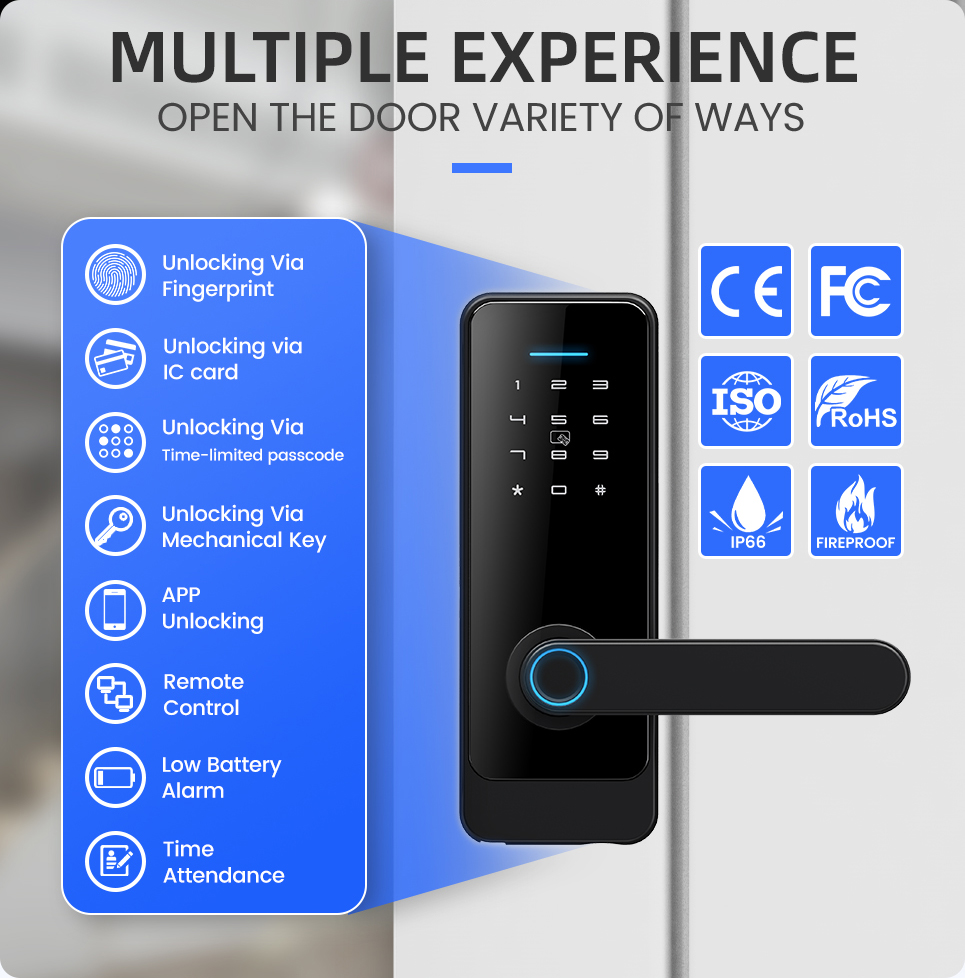

The wireless smart door lock can be used both indoors and outdoors. It is controlled from a smartphone with the TTLock app. It can be unlocked in five ways: fingerprint, PIN codes, RFID cards, mechanical key or mobile app. The single-latch design lets you reverse the handle to suit either door opening direction. The lock is powered by four AAA batteries (not included).
The lock itself communicates via Bluetooth when you are within 5 metres. For remote control over the internet, you need the G2 gateway, which can be purchased separately at any time.
Key parameters:
- Wireless unlocking with fingerprint, PIN code, key, RFID card (13.56 MHz) or mobile app
- Material: aluminium alloy
- Rozmiar odcisku palca: FPC 160x160
- Capacity: 100 fingerprints, 150 PIN codes
- Powered by 4 AAA batteries (not included)
- Single-latch lock, reversible handle
- Micro-USB port for emergency power
- Protection against unauthorised attempts: 5 errors = 3-minute lockout
- Easy installation, can be used with the existing lock mechanism

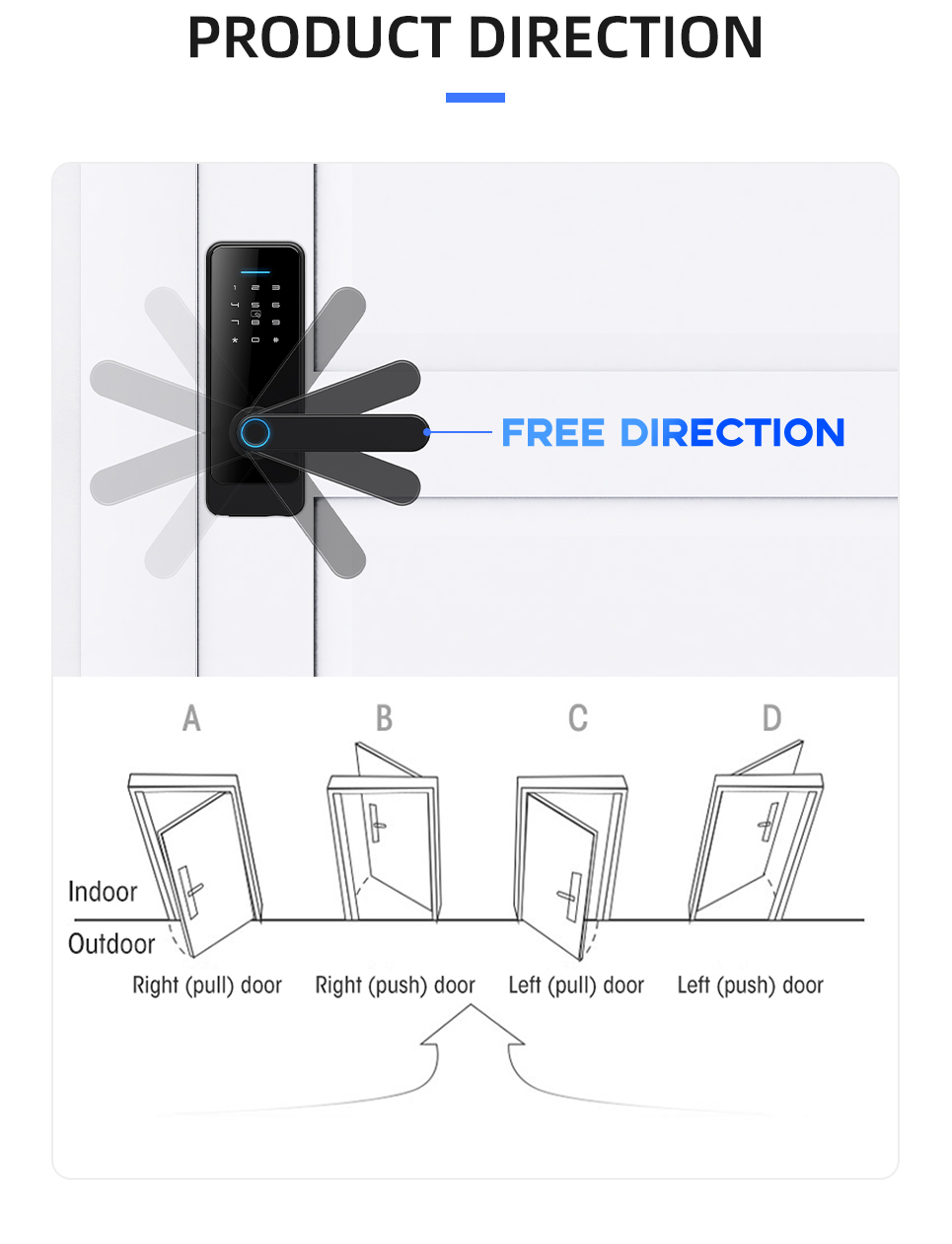

- Suitable for any door opening direction

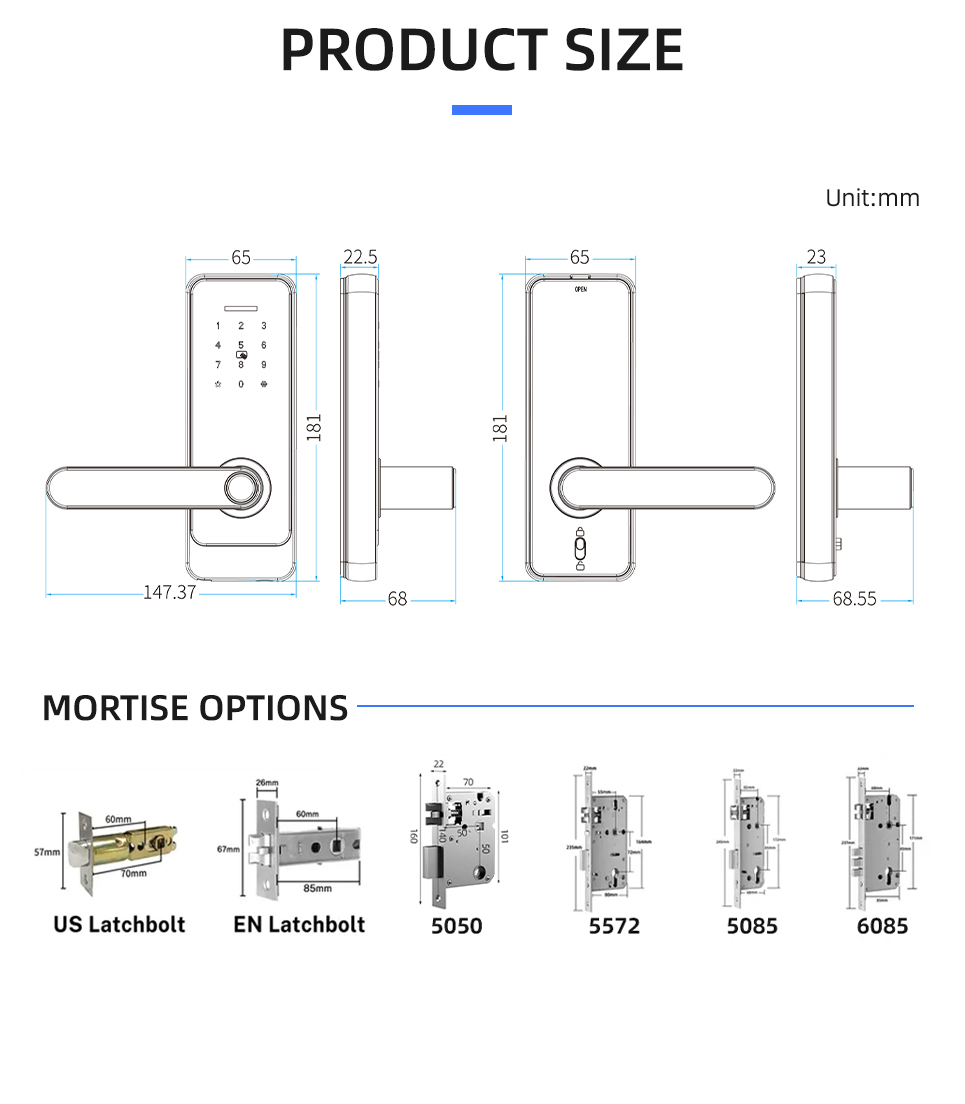

- Dimensions: 65 × 181 × 22.5 mm
Standard Bluetooth | 4.1 BLE
| |
Power source | 4x AAA
| |
Operating voltage | 4.5V - 9V
| |
Low voltage warning |
| |
Standby current | 65µA
| |
Operating current |
| |
Operating temperature | -20 - 70 °C
| |
WFingerprint false acceptance rate |
| |
Fingerprint false rejection rate | <1.0% | |
Available colours | Silver, black | |
Escutcheon dimensions | 65 × 181 × 22,5 mm |
Gniazdo/wpust:
