Wall Terminals

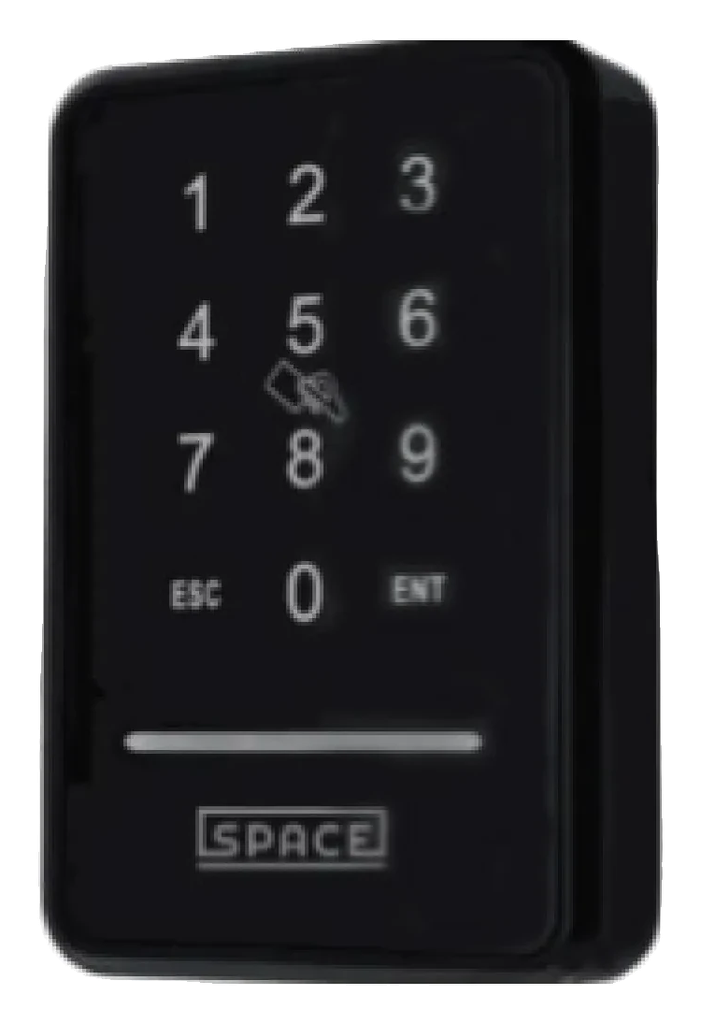

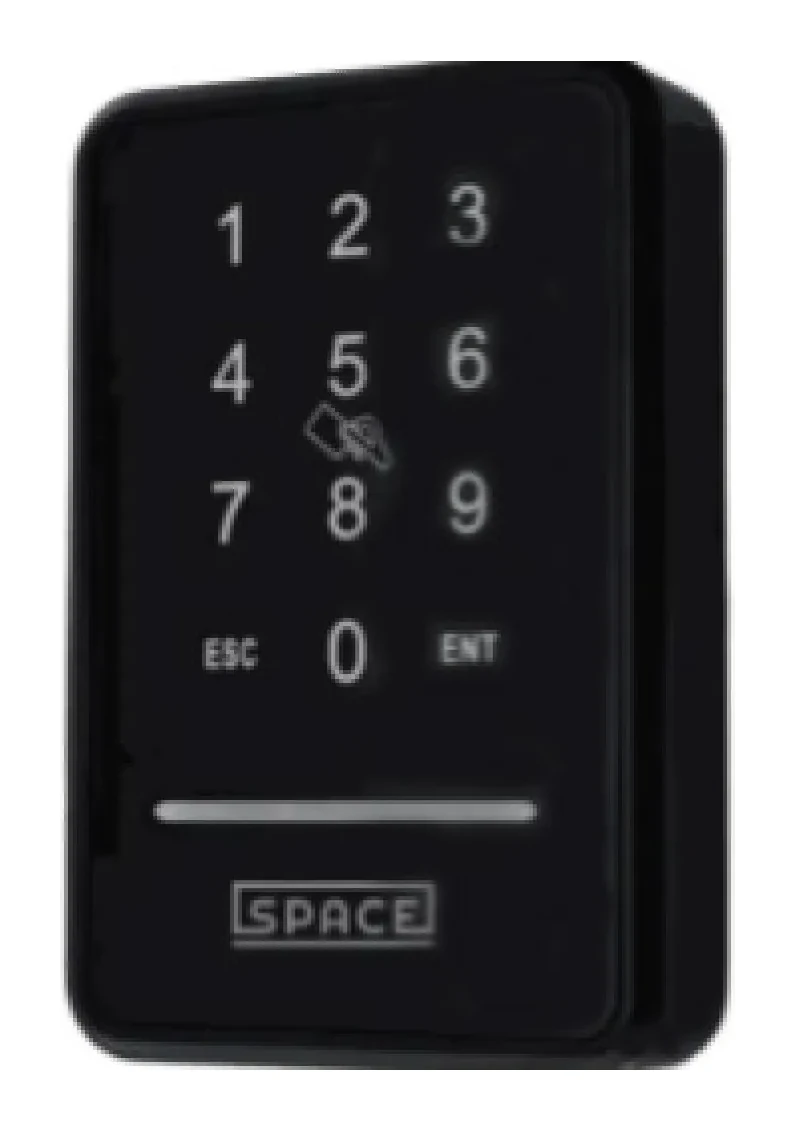

Space Pad Classic Keypad
Z-Wave keypad for doors and gates: PIN, MIFARE card or app.
Three ways in
PIN code, MIFARE card and remote opening from the app. The same permissions as Space locks, managed in Space Manager.
For doors and gates
An NO/COM/NC contact drives an electric strike, a magnetic lock or a gate operator. IP55 housing, operation from −20 to +70 °C.
Optional access method, available on order
Bluetooth 6.0 (BLE) optional, on order
An optional Bluetooth 6.0 (BLE) module, available on order, adds two functions. Hands-free automatic opening: the user carries a wristband or clip with a BLE beacon, and when it comes within the set distance of the lock or Pad, the device opens the passage by itself, according to the assigned permissions and schedule; every opening is logged. This also suits autonomous devices such as robots, AGVs and vehicles that need the right to pass or drive through. Direct connection: the SPACE BMS Manager mobile app communicates with the lock or Pad locally over Bluetooth, without internet.
Accessibility
- PIN code, card or app: everyone chooses what is easiest, and residents can open the door or gate for a visitor from the app without getting up.
- With the optional Bluetooth 6.0 module, the door or gate opens as a resident approaches with a wristband or clip, also on a wheelchair.
- Permissions are granted and revoked in the app, for example for carers or staff, and every entry is logged.
Specifications
| Connectivity | Z-Wave 800, 868.42 MHz (EU) |
|---|---|
| Unlocking | PIN code, MIFARE 1K card, app (remote) |
| PIN code | 4–12 digits; a longer code adds security |
| Users | 221 standard + 9 administrators |
| Power | 9–36 V DC, standby current 65 µA |
| Output | potential-free NO/COM/NC contact |
| Ingress protection | IP55 |
| Operating temperature | −20 … +70 °C |
| Humidity | 10–95% |
| Dimensions | approx. 118 × 76.5 mm |
| Mounting | surface |
| Material | PET |
| Colour | black |
| Warranty | 12 months, with an optional paid extension to 24 months |
| Optional, on order | Bluetooth 6.0 (BLE) module: automatic opening with a BLE beacon and direct local connection to the app |
Technical documentation
Specifications
| Device type | Wall terminals and keypads |
| Connectivity | Z-Wave 800 |
| Opening method | RFID card, PIN code, Mobile app |
| Suitable for | Hotels and apartments, Offices and commercial buildings, Residential and rental |
| Connection method | Z-Wave 800 |
| Brand | SPACE |
| Lock | Z-Wave 800 |
| Device type (old) | Keypads |
