EV Charging · AC

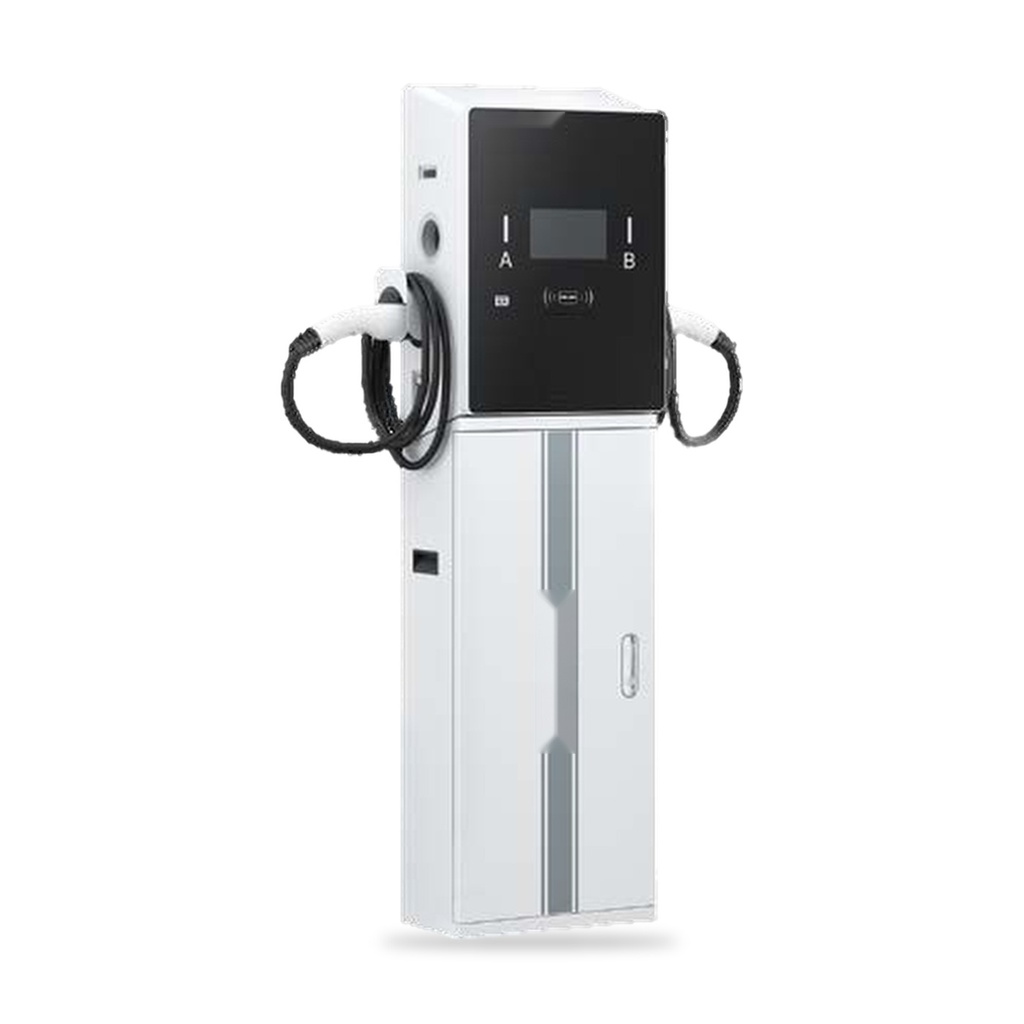

SPACE EV AC 2×22 Charger
A dual-outlet 2 × 22 kW AC charger with a built-in MID meter and a 7" touchscreen, for hotel and office car parks.
Product code: SPC-EV-AC2X22
Use case
A business hotel wants to offer charging in its guest car park and bill it accurately.
One unit serves two parking spaces, the built-in MID meter records every session, and guests start charging with an RFID card, the app or an optional card-payment terminal.
How it works
Two cars at once
Two Type 2 outlets with up to 22 kW each, as sockets or 5 m tethered cables.
Billing-ready metering
A built-in class B MID meter records the energy delivered.
Smart load management
Ready for dynamic load balancing, so several chargers can share the building’s available power.
Specifications
| Parameter | Value |
|---|---|
| Rated power | 2 × 22 kW (400 V); 2 × 7.3 kW single-phase version |
| Output current | 6–32 A per outlet |
| Connectors | 2 × Type 2 socket or 2 × Type 2 cable, 5 m |
| Energy meter | Built-in MID meter, class B |
| User authentication | RFID (ISO 14443), mobile app, card-payment terminal optional |
| Communication protocol | OCPP 1.6J (2.0.1 upgrade announced by the manufacturer) |
| Connectivity | Bluetooth, Ethernet, Wi-Fi/4G optional; RS485/CAN |
| Load management | Dynamic load balancing ready |
| Residual current protection | Type A RCBO + 6 mA DC |
| Display | 7" touchscreen, LED indicators |
| Ingress / impact protection | IP55 / IK10 |
| Operating temperature | −30 to +50 °C |
| Dimensions (W × H × D) | Wall 400 × 684 × 240 mm; pedestal 400 × 1484 × 240 mm |
| Weight | ≤ 23.5 kg (wall), ≤ 41 kg (pedestal) |
| Firmware updates | Local or over-the-air |
| Standards (manufacturer declaration) | IEC 61851-1, IEC 61851-21-2, MID |
All technical data are manufacturer declarations. Specifications may change without notice. Edition 10.2026.
How we work with you
- Check of available power and cable routes on site.
- Choice of chargers and load management for your car park.
- Configuration of access: RFID cards, app or payment terminal.
- Installation, commissioning and connection to an OCPP back office.
Detailed technical documentation and drawings are available on request.
Technical documentation
Specifications
| Device type | EV chargers |
| Brand | SPACE |
| Connectivity | Bluetooth, Wi-Fi, Ethernet (LAN), Cellular |
| Suitable for | Hotels and apartments, Offices and commercial buildings |
| Charging type | AC (alternating current) |
