Locker Locks

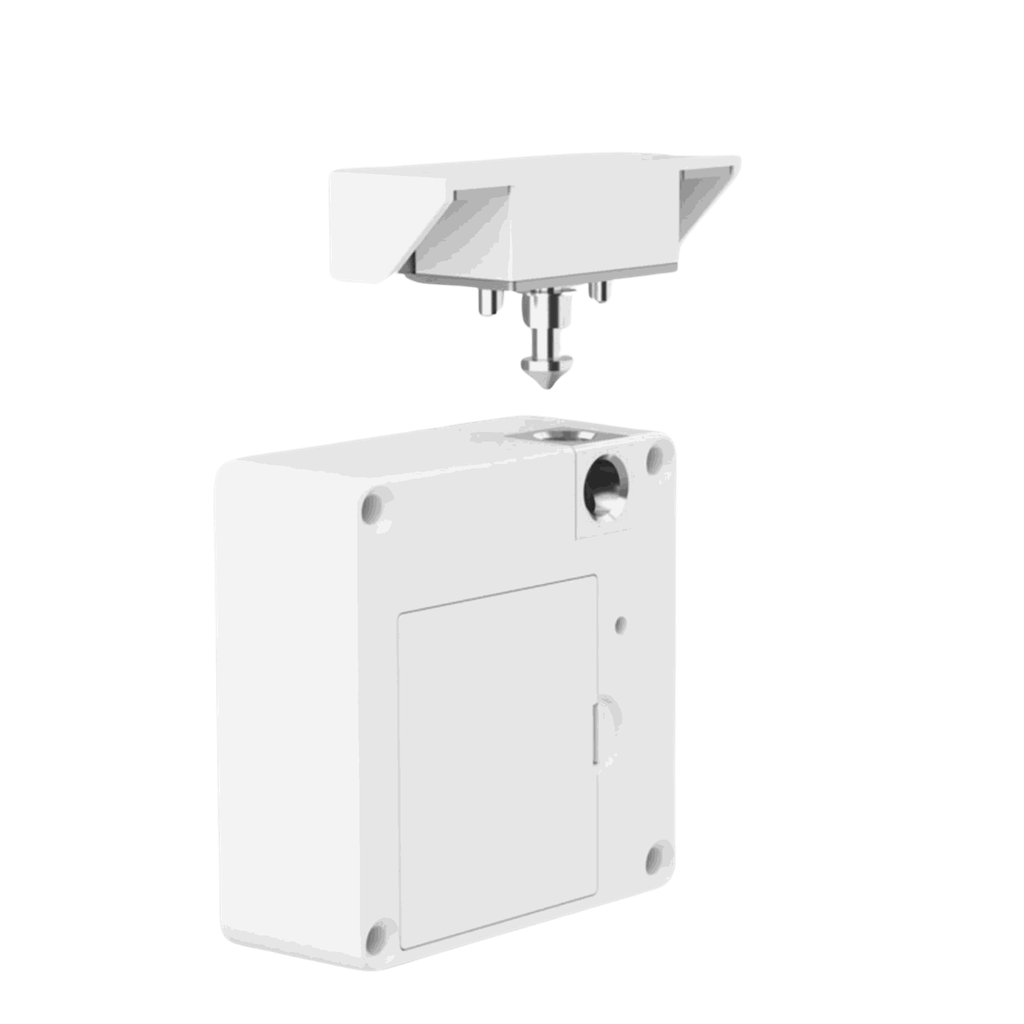

Space Locker ZBT Locker Lock
Locker lock: Z-Wave, NFC/MIFARE, Bluetooth and app.
One card for door and locker
The same MIFARE card opens the room and the locker: in hotels, pools, gyms or offices. Reads cards through an 18 mm furniture panel.
Z-Wave and the app
Open with the app, a card or Bluetooth. The lock reports events and battery status, and the door relocks by itself after approx. 5 s.
Optional access method, available on order
Bluetooth 6.0 (BLE) optional, on order
An optional Bluetooth 6.0 (BLE) module, available on order, adds two functions. Hands-free automatic opening: the user carries a wristband or clip with a BLE beacon, and when it comes within the set distance of the lock or Pad, the device opens the passage by itself, according to the assigned permissions and schedule; every opening is logged. This also suits autonomous devices such as robots, AGVs and vehicles that need the right to pass or drive through. Direct connection: the SPACE BMS Manager mobile app communicates with the lock or Pad locally over Bluetooth, without internet.
Accessibility
- Opens with a card, the app or directly over Bluetooth – no small key to turn, easier for people with limited hand mobility.
- With the optional Bluetooth 6.0 module, the locker can open as its authorised user approaches with a wristband, also on a wheelchair – handy in pools, hospitals and schools.
- A child or an older person lost the card? The administrator blocks it and assigns a new one in the app, with no lock change.
Specifications
| Unlocking | MIFARE card, app, Bluetooth |
|---|---|
| Connectivity | Z-Wave 800 |
| Users | 221 standard + 9 administrators |
| Power | 4 × AAA (not included), approx. 25,000 openings |
| Door thickness | 1–16 mm |
| Operating temperature | 0 … +50 °C |
| Dimensions | 76 × 76 × 29.5 mm |
| Colour | black |
| Warranty | 12 months, with an optional paid extension to 24 months |
| Optional, on order | Bluetooth 6.0 (BLE) module: automatic opening with a BLE beacon and direct local connection to the app |
Specifications
| Device type | Cabinet locks |
| Brand | SPACE |
| Connectivity | Z-Wave 800, Bluetooth |
| Opening method | RFID card, Mobile app |
| Suitable for | Hotels and apartments, Offices and commercial buildings |
| Connection method | Z-Wave 800 |
| Lock | Z-Wave 800 |
| Device type (old) | Locks |
